Timer 555 as voltage generator

voltage generator

timer timer555

Julia Buaer
English
Advanced

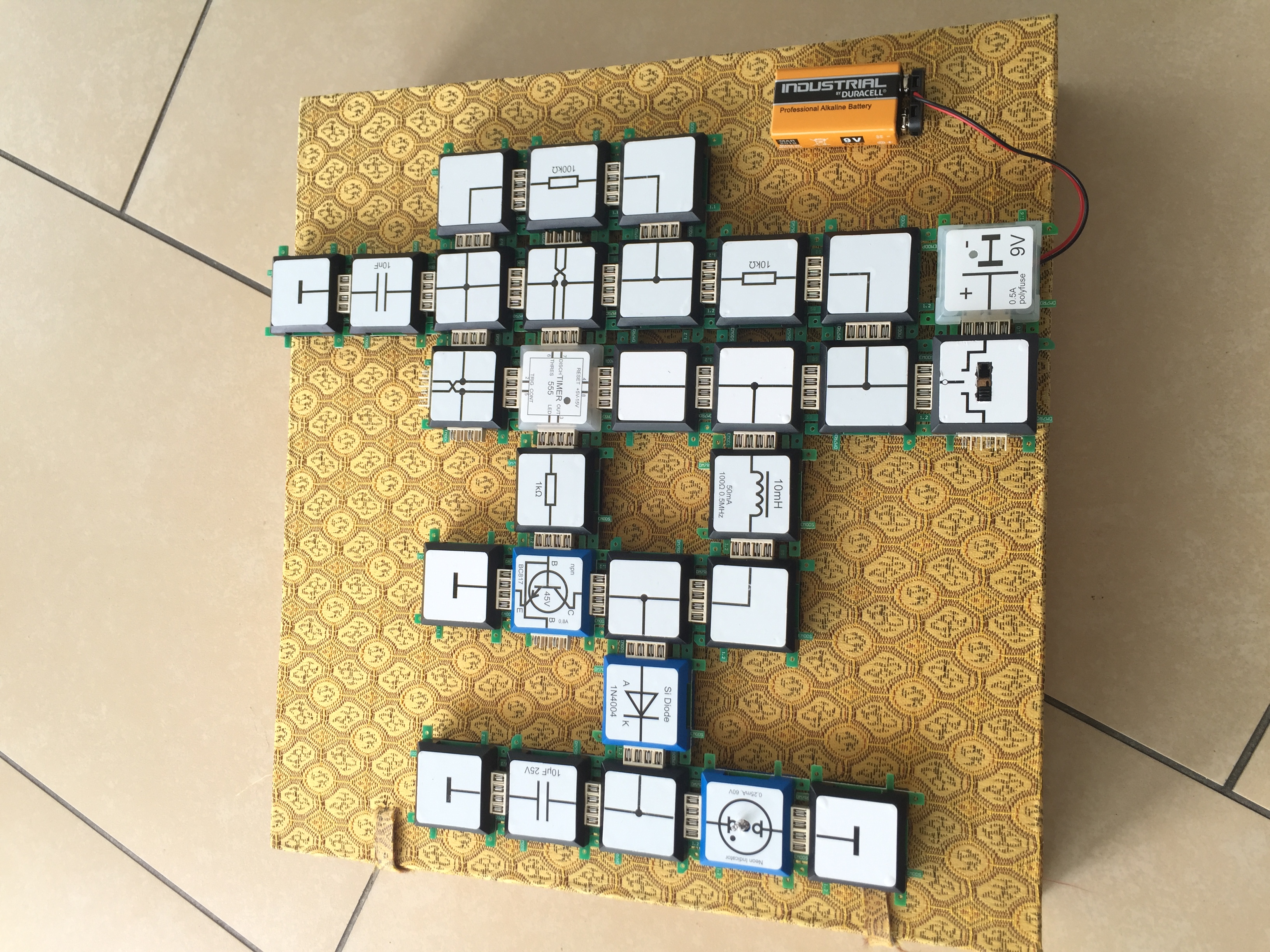

Caution: The transistor can produce health-hazardous voltages. The gas discharge lamp is used to limit the maximum voltage. So please do not disconnect the lamp, while the circuit is active. The timer 555-brick species the frequency, which is used by the transistor to charge and discharge the coil. The output of the timer switches the transistor on and off. Since the change of the current ow takes place in a very short time, the inductive voltage is very high. The switching frequency of 670Hz is too high to be seen by the naked eye. The gas discharge lamp is connected to a capacitor which is charged by use of a rectier diode. The capacitor is necessary, because the single event of the coil inductance does not carries enough energy to light the gas discharge lamp. It stores the energy until the ignition voltage of approx. 60V is reached. After ignition, the capacitor is discharged and the process starts again. The interesting thing about this circuit is that it can produce a higher voltage than provided by the power-supply. Increasing the voltage by a combination of coil and capacitor is used in uorescent tubes or backlight TFT or LCD screens. This circuit is also called upconverter (boost converter) or booster (amplier) and is used in transformers or switching power supplies, used for computers. The stabilization of the output voltage is very important and is done in this experiment by the glow-lamp. With the capacitor at the input of the timer 555-brick the switching frequency can be changed. The relationship between resistance and capacitor denes the frequency as shown already in experiment 13.1

Deja un comentario

Tu dirección de correo electrónico no será publicada. Los campos obligatorios están marcados con *

Art. 113629
Anzahl: 1
Art. 114164
Anzahl: 1
Art. 113667
Anzahl: 1
Art. 113645
Anzahl: 1
Art. 113686
Anzahl: 2
Art. 113675
Anzahl: 4
Art. 113702
Anzahl: 1
Art. 113695
Anzahl: 1
Art. 113632
Anzahl: 4
Art. 113634
Anzahl: 5
Art. 113633
Anzahl: 1
Art. 113631
Anzahl: 1
Art. 113649
Anzahl: 1
Art. 113648
Anzahl: 1
Art. 113647
Anzahl: 1
Art. 113630
Anzahl: 1
Art. 113682
Anzahl: 1
Art. 118371
Anzahl: 1
